SD

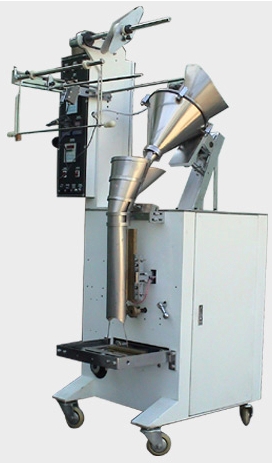

Macchina per Polveri
Ma macchina e adatta per confezionare buste e bustine di
Polvere, tipo farina, la sua tecnologia e molto avanzata,
elegante e compatta, molte sue parti sono in acciaio
inossidabile, chiude in 3 parti , e taglia, con la possibilità
di mettere date e piccoli test, certificate CE…
Adopting the wholly controlled by computer, the whole process
can be accomplished automatically, such as : making-bag ,
measuring, filling, enveloping, printing, lot number, producing
date , easily tearing breach, breaking or linking bag, counting
and so on. Adopting the volume metering methods of spiral
shell’s pole type, which is especially suitable for powder
article Such as Flour etc. The Computer controls, compresses the
air to drive, simple operation, safeguard convenient,
performance stability, reliable quality. Package strap degree
has no degree to adjust. Adopting the special bags’ long control
technology, having bag-making accurate length, adjusting
conveniently, and adopting unique technology to solve the
problem of wiredraw and water clock, guarantee the seal tightly.
Unique photoelectric technology, guarantee that bag-making
pattern completely with trademark. The packaging amounts has no
adjustment within specified range. Automatic printing, easily
tearing breach, convenient usage. The machine is elegant in
appearance, with whole stainless steel structure, which is
accord with hygienic requirements of food and medicine packing,
suitable for food, medicines and chemical vocation.
|
Model |
|
SD-75F |
|
AS
500 |
AS-4000 |
|
Voltage |
Single phase 220V/50Hz or 380V/50Hz three phase
|
|
Product capacity(bag/min) |
15-30 |
15-60 |
|
Packing capacity(ml) g |
|
1-100 |
|
100-1000 |
500-4000 |
Size of bag(mm)
Dimensione Pacco |
length |
80-150 |
|
80-320 |
100-310 |
|
Width |
30-80 |
|
40-180 |
70-210 |
|
Weight(kg) |
|
350 |
|
1000 |
800 |
|
Dimension(mm) |
length |
600 |
|
1300 |
1500 |
|
width |
790 |
|
800 |
1000 |
|
height |
1800 |
|
2100 |
2200 |
| |
|
|
|
|
|
|
|
