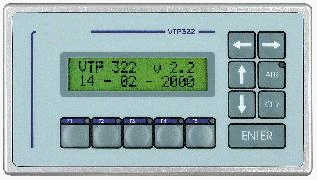

VTP322  DISPLAYED LOGIC CONTROLLER

 Main features

� Alphanumeric (16x2 characters) monocromatic LCD display with hight contrast and yellow leds backligh

� Keyboard with tactile sensation and buzzer

� Function keys with leds

� 32 Kbyte FLASH memory for PLC program, 32 Kbyte FLASH memory for operator panel program, 1024 word of

PLC data memory, 64 Kbyte EEPROM memory for operator panel or PLC recipes, 80 word not volatile RAM

memory

� 12 PNP digital inputs, 8 static digital outputs (24 VDC 0,5 A)

� One 10 bit analogic inputs for PT100, J or K termocouple, current or voltage

� Two 0/10 V 8 bit analogic outputs

� 2 configurable serial lines interfaces (rs232 , 422, 485), printer connection

� Real time clock

� Standard and personalized communication protocols for PLC or other connections

� C language or AWL (instruction list) or graphic ladder programming (graphic ladder development)

� Special functions for PID regulators, step motor and electronic cams management

� Extractable terminal boards

� AC or DC power supply with large range (10/22 AC, 12/28 DC)

� IP65 protection

� Size: 132x118 frontal, mm 75 depth
